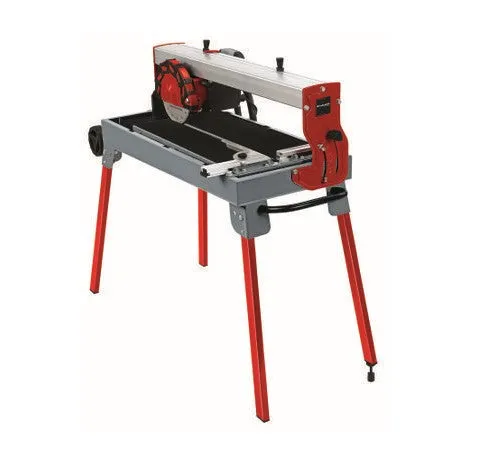

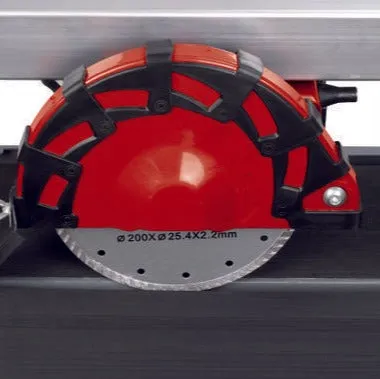

The TE-TC 620 U radial tile cutting machine is a reliable, high-quality and powerful machine for cutting wall tiles and floor tiles quickly and exactly to size. Its robust 900W motor has ample power for driving the 200mm diameter turbo diamond cutting wheel with ease through even hard-to-cut material. An extra-long drag length of 620mm enables the user-friendly cutting of even large tiles.

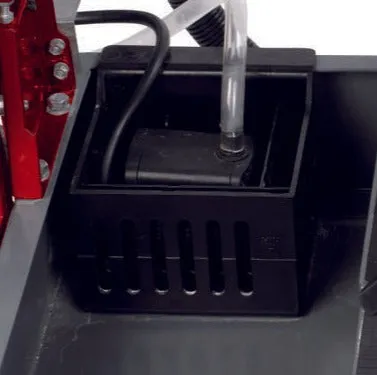

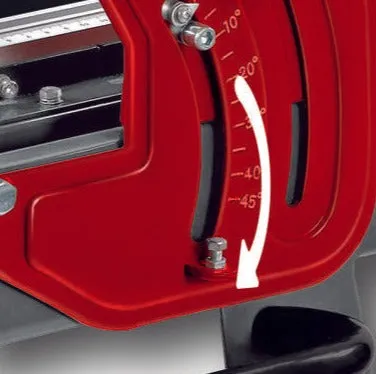

For precise, speedy cutting the TE-TC 620 U comes with a motor head which can be infinitely swiveled from 0° to 45° and has a motor guide with 6-fold ball bearing. Mitre cuts, double miter cuts and longitudinal cuts can be performed with just a few moves thanks to an aluminium angle stop which can be adjusted exactly to the degree. A coolant pump ensures not only optimum cooling of the diamond wheel but also dustfree operation.
It has a magnet which filters fine metal particles out of the water in order to protect the pump. In the solid water collection tank made of sheet steel there is also a dirt trap with washable filter mats for keeping coarse particles out of the pump. The large work table with non-slip rubber surface rests on a robust, folding base frame with height-adjustable foot and enables ergonomic, safe operation. Moving the machine is no problem thanks to the transport wheels and transport handle.
- Extra-long drag length

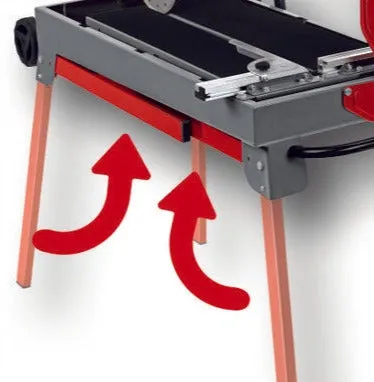

- Robust folding base frame
- Transport wheels and handle

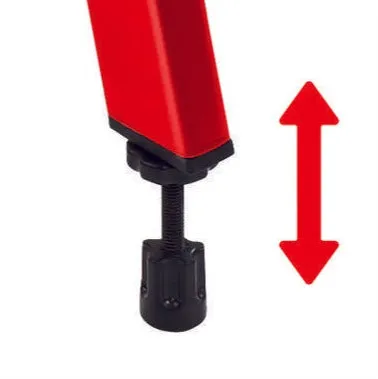

- Height-adjustable foot
- Dirt trap with washable filter mats
- Integrated magnets for filtering out fine metal particles
- Large work table with non-slip rubber support
- Solid water collection tank made of sheet steel
- Aluminium angle stop adjustable to the degree

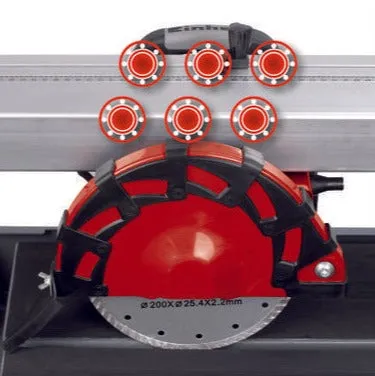

- Motor guide with 6-fold ball bearing
- Infinitely swiveling motor head from 0° - 45°
- Turbo diamond cutting wheel
Specifications
| Angle stop max. | 90° |
| Angle stop min. | 0° |
| Continuous power S2 | 30min |
| Cutting disc diameter | 200mm |
| Cutting disc holder diameter | 25,4mm |
| Cutting height at 45° | 25mm |
| Cutting height at 90° | 30mm |
| Idle speed max. | 2950rpm |
| Max. cutting length | 620mm |
| Max. swivel range (cutting head) | 45° |
| Min. swivel range (cutting head) | 0° |
| Power S2 | 900W |
| Product weight | 34,4kg |
| Workbench length | 610mm |
| Workbench width | 325mm |
