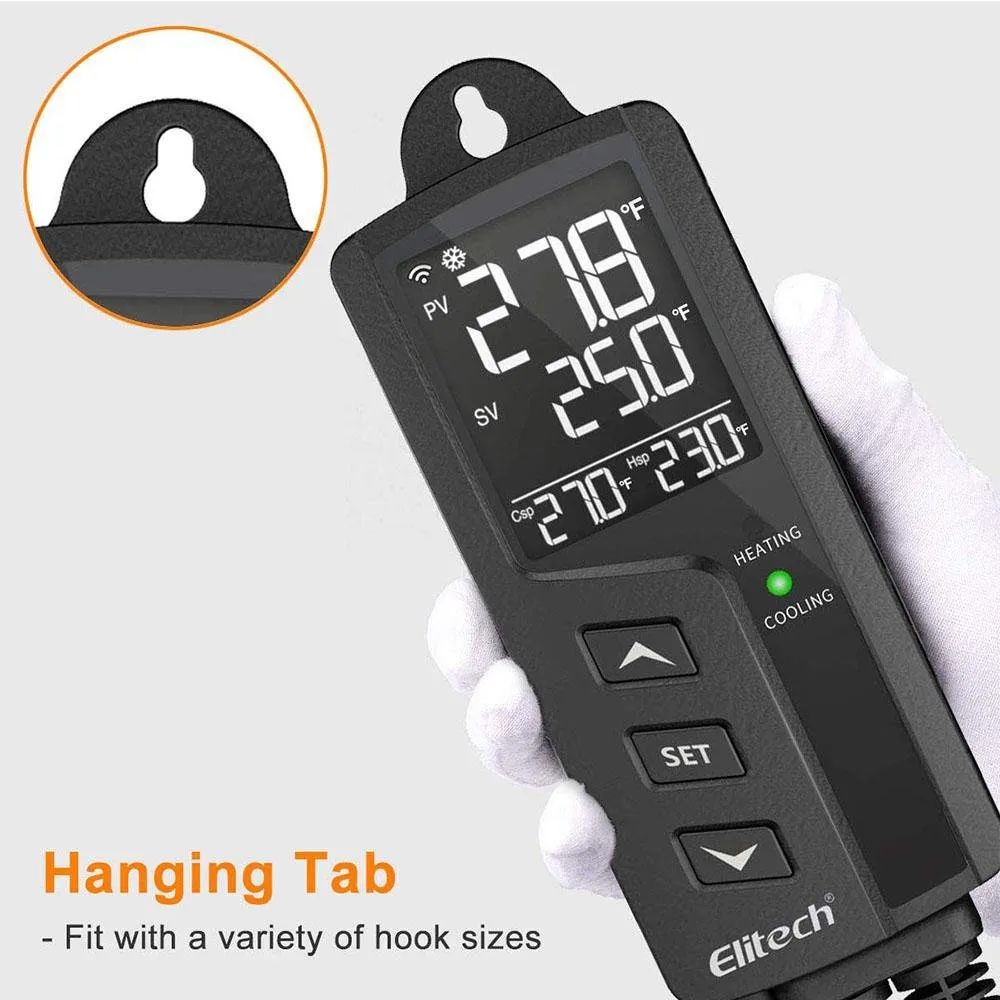

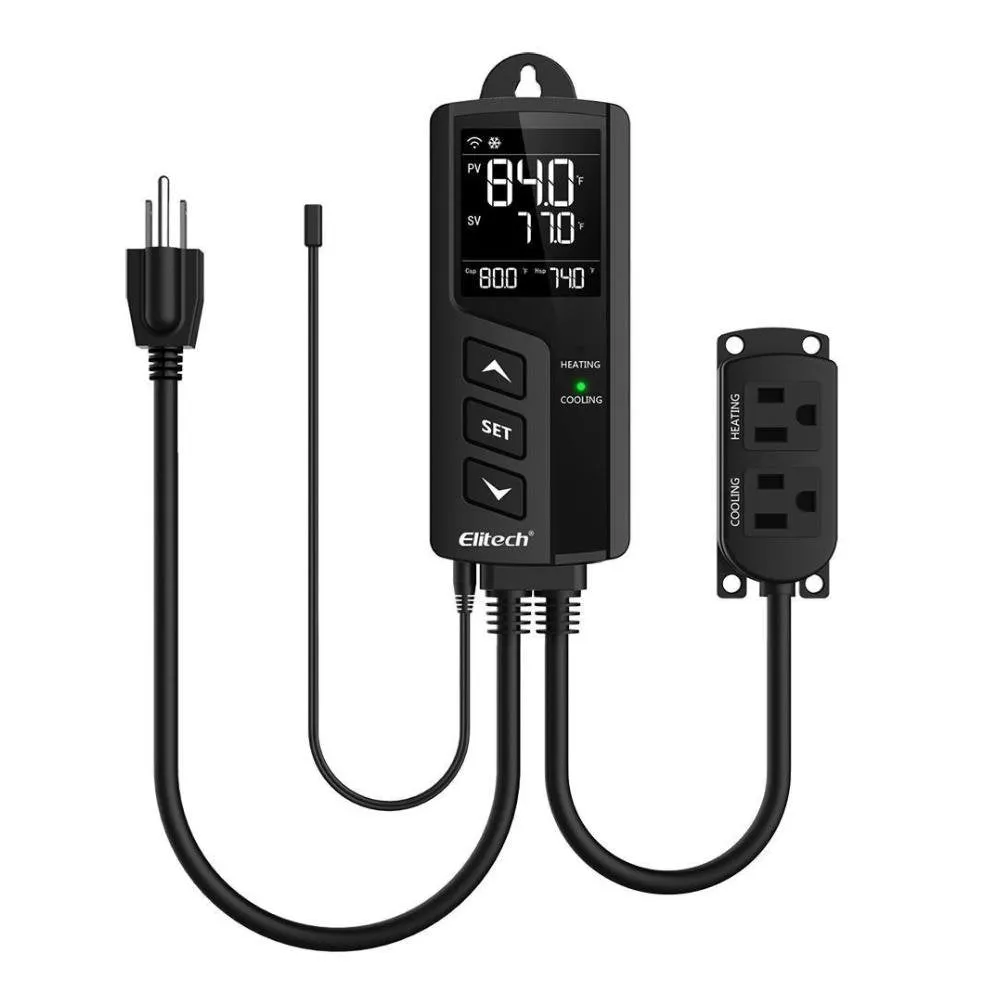

Elitech STC-1000WiFi is the WiFi version of STC-1000Pro - a plug-and-play smart digital temperature controller. It features two pre-wired heating and cooling outlets that can easily connect your refrigeration and heating equipment to realize automatic ideal temperature control. Its three-button design and LCD display give a clear visual effect on temperature viewings and personalizing settings and it supports Centigrade/Fahrenheit unit options.
Meanwhile, its optional UK/EU/US standards power plugs and outlets can satisfy various requirements. This controller can be widely used under various scenarios and electric appliances that need automatic temperature controlling such as homebrew, aquarium, incubation pet breeding, seedling heat mats culture fermentation, etc.

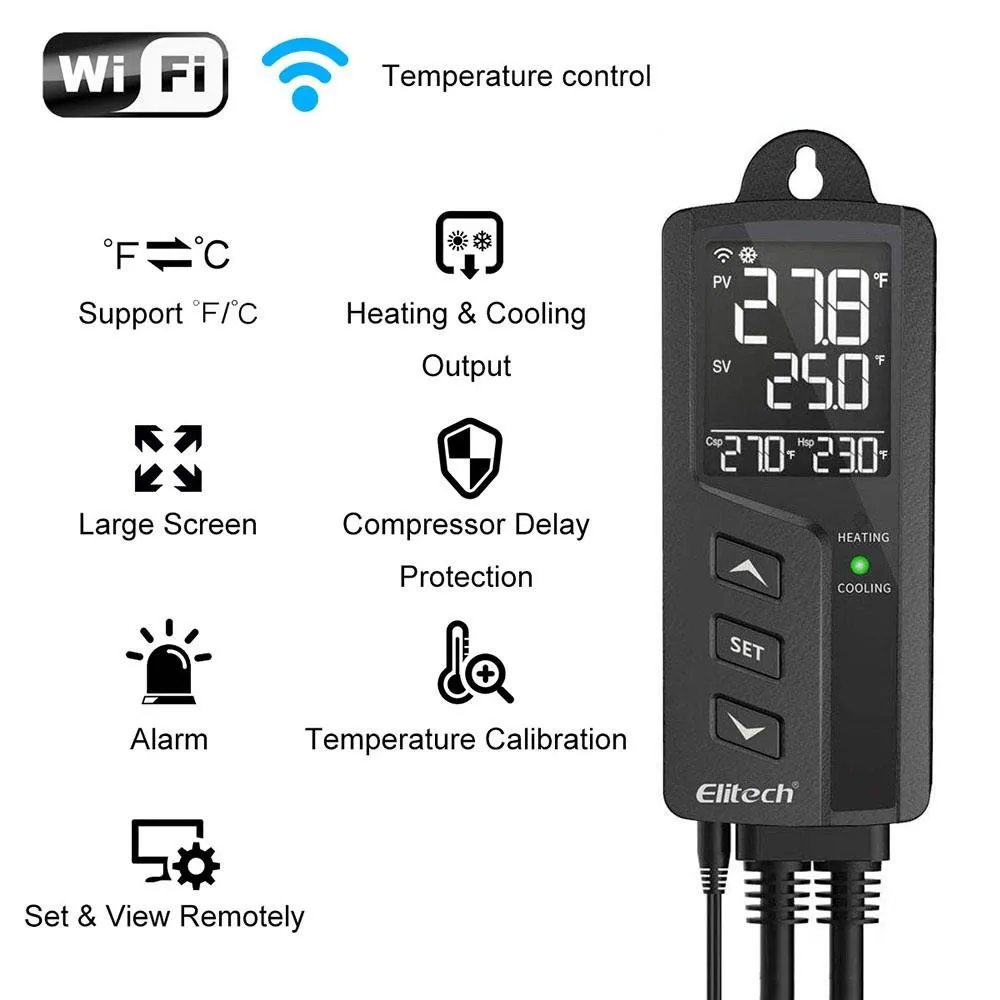

Key Feature:

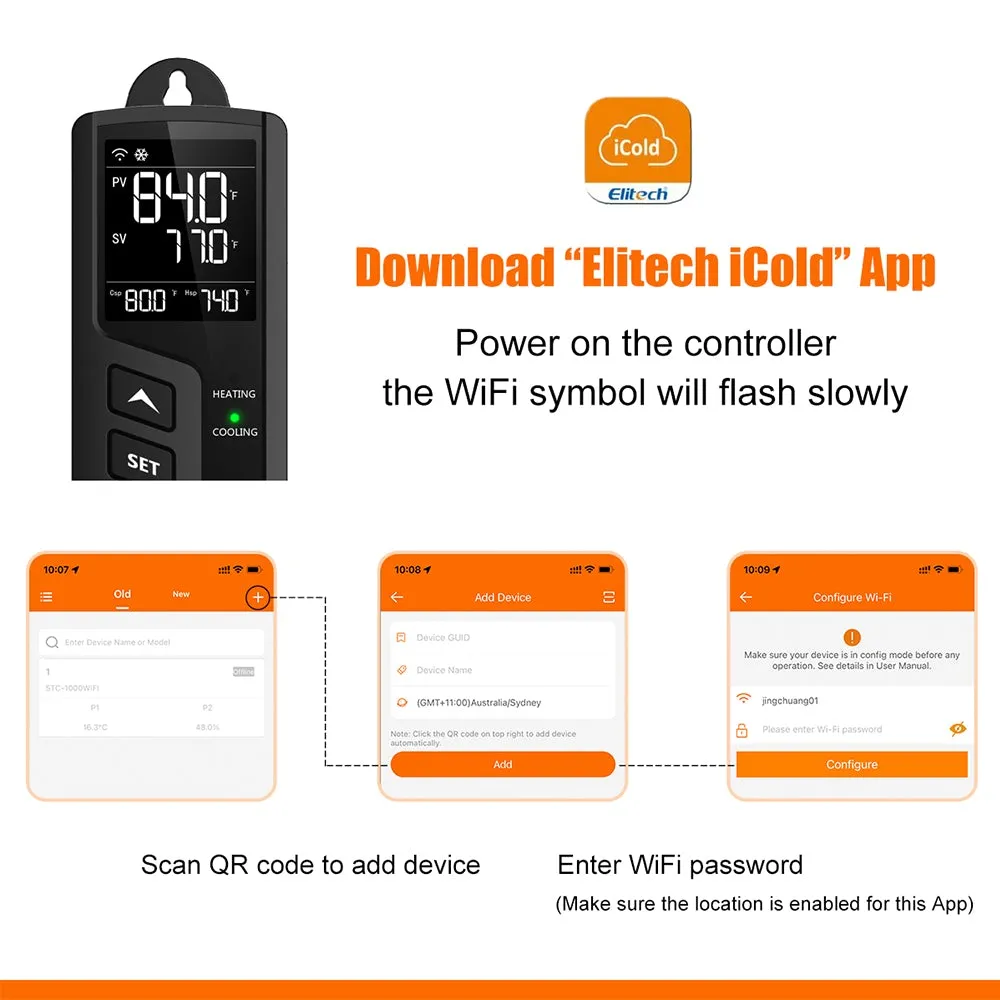

- 【Remote Monitoring via WiFi】Set the parameter and view data, graph, alarm history through our Elitech iCold platform or free APP.

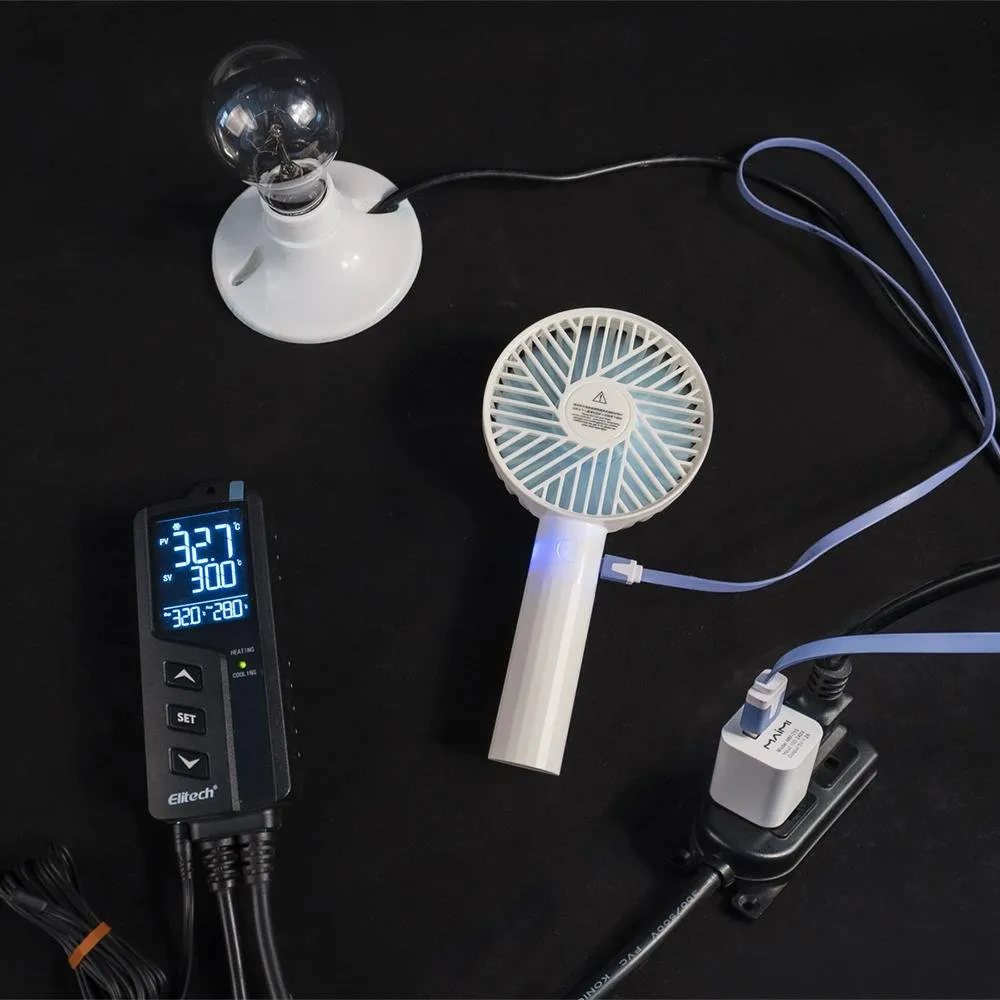

- 【Dual Relay Output】Be able to connect with cooling and heating device at the same time.
- 【Wide Temperature Range】It measures from -49℉～239℉ and starts cooling or heating according to set parameters, which helps to keep the desired temperature all the time.
- 【Multi-functional Setting】Its functions include setting high or low alarms, start delay, temperature calibration, ℃/℉ and etc.
- 【Safe & Reliable】Comply with CE, FCC standards and adopt fireproof ABS case, UL94 V-0 for safety.
Specifications
- Power supply: 110-240VAC, 50/60HZ
- Total power consumption: 5W

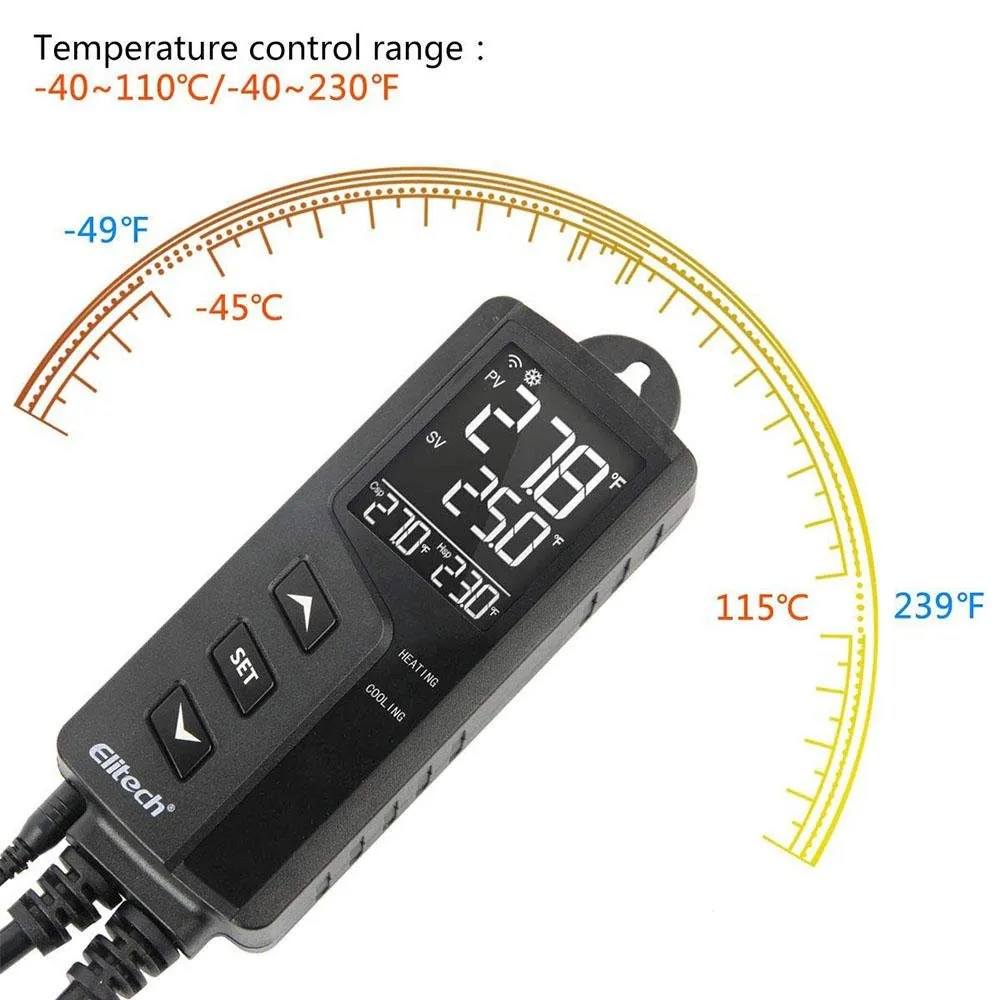

- Temperature measuring range: -45°C ~ 115°C/-49 ~ 239°F
- Temperature control range: -40°C ~ 110°C/-40 ~ 230°F
- Temperature resolution: 0.1C/0.1°F
- Temperature accuracy: ±1°C/±2°F
- Operating ambient temperature: -10°C~ˇ65°C / 14°F ~ 149°F
- Storage temperature: -20°C~75°C / -4°F ~ 167°F
- Relay contact capacity: 10A /110~240VAC
- Sensor type: NTC Temperature Sensor(10KQ/ 25C, B value=3435K
- Working mode: Heating or Cooling

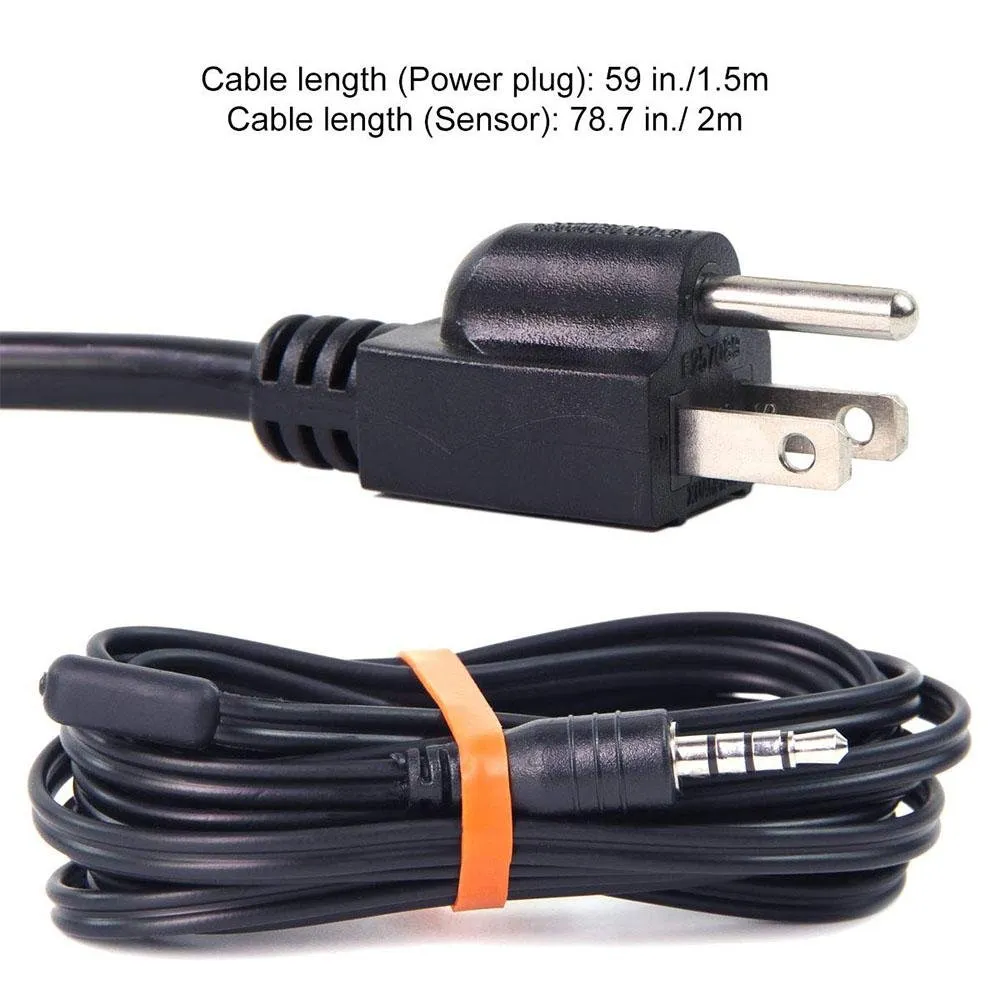

- Cable length(Sensor): 2m
- Cable length(Power plug): 1.5m
- Cable length(Heating/Cooling Outlet): 0.3m

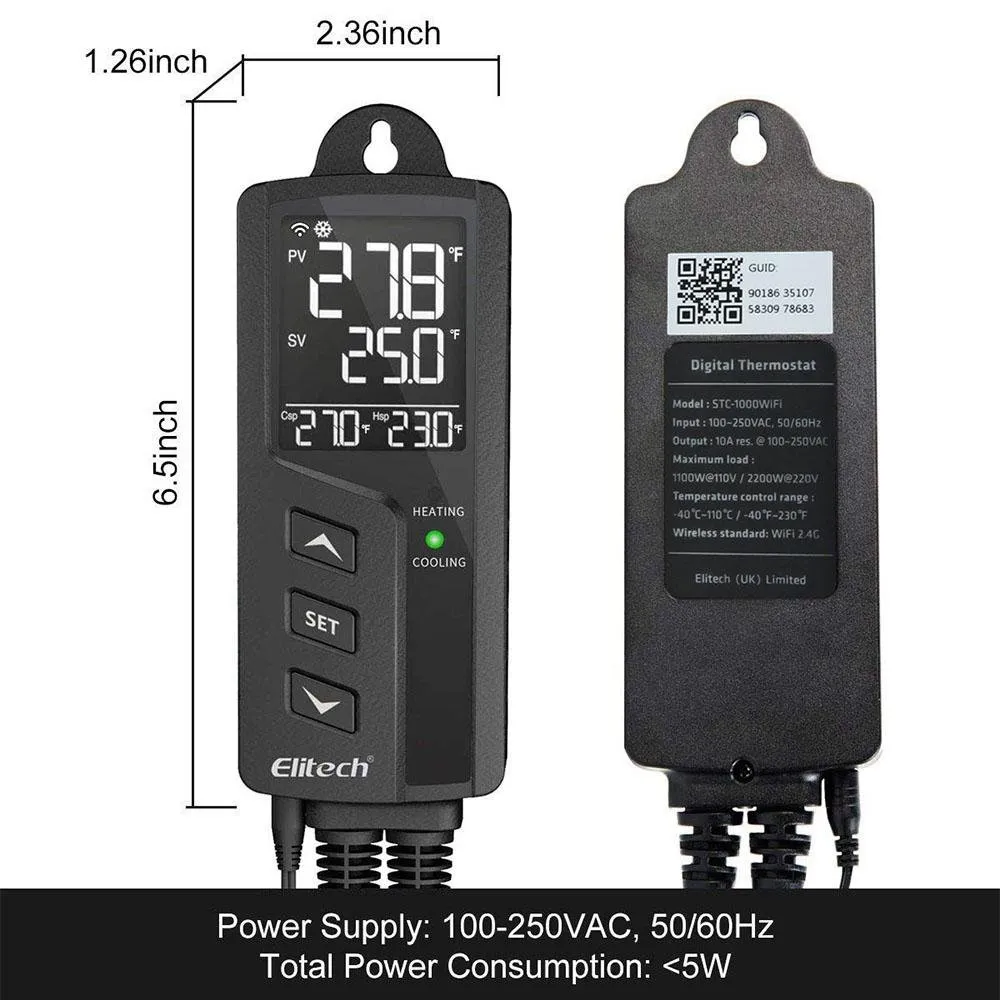

- Dimensions: 265mmxx 1675mm
- Best LCD screen viewpoint: 6 o'clock position
- WiFi type: 2.4GHz WiFi

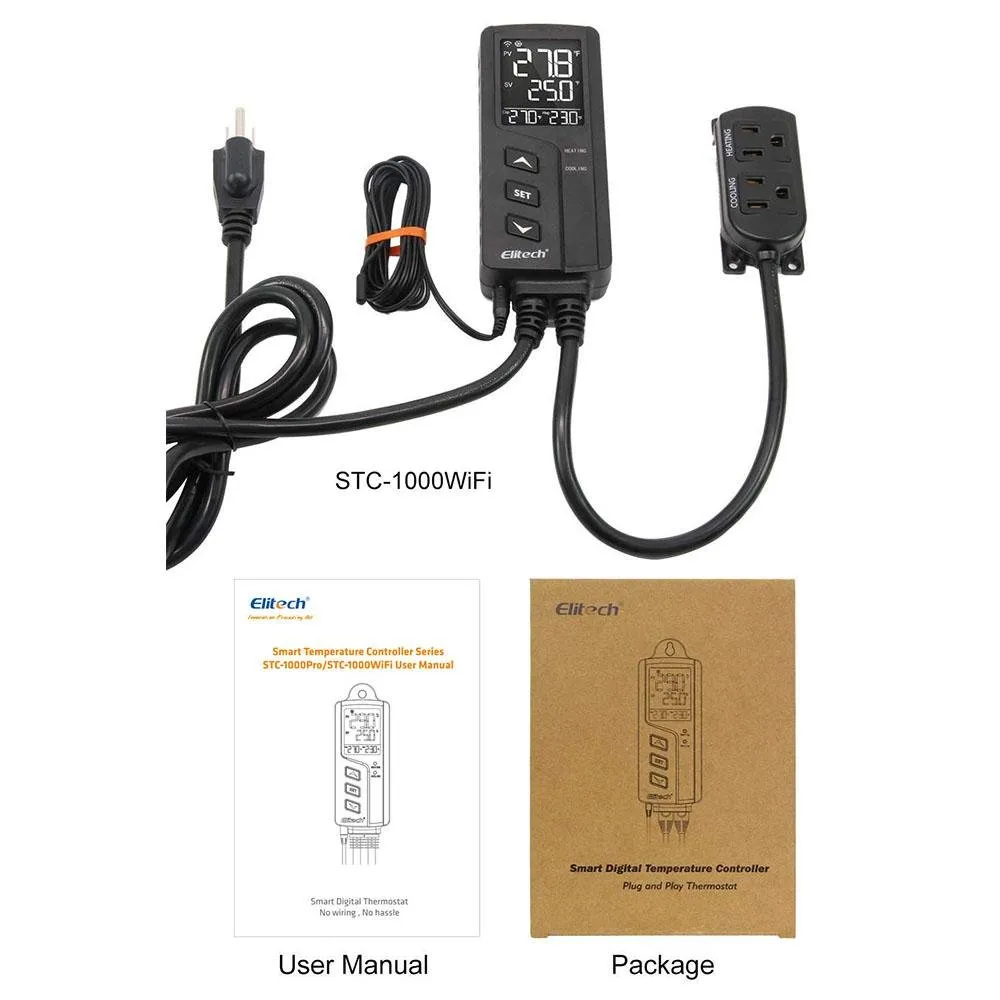

Package Included
- 1 x STC-1000WiFi Thermostat
- 1 x Heating Outlet(11.8 in./0.3m)
- 1 x Cooling Outlet(11.8 in./0.3m)
- 1 x US Power Plug(59 in./1.5m)
- 1 x Temperature Sensor(78.7 in./2m)
- 1 X User Manual
Application
This controller can be widely used under various scenarios and electric appliances that need automatic temperature controlling such as homebrew, aquarium, incubation pet breeding, seedling heat mats culture fermentation, etc.
